Type SHD-GC, ROUND PORTABLE CABLES WITH GROUNDING CONDUCTORS

GROUND-CHECK CONDUCTOR AND TPU JACKET

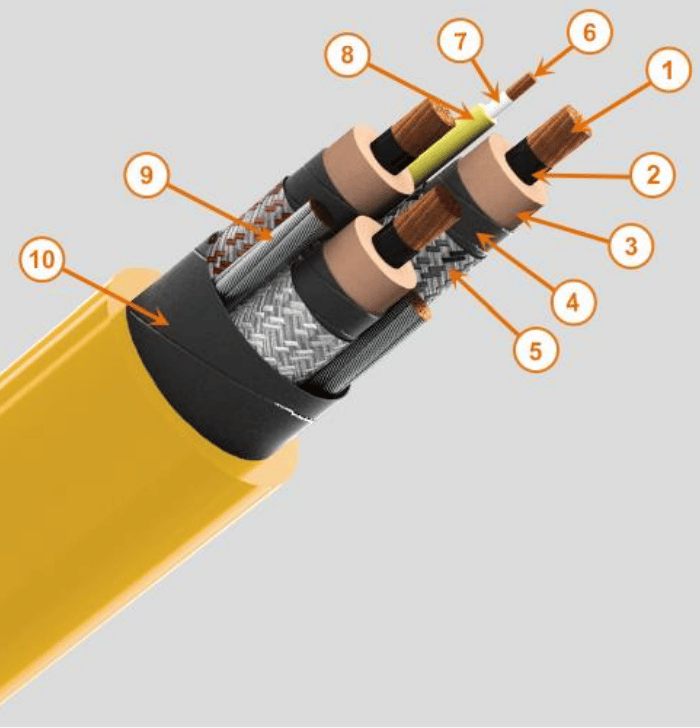

  1. Flexible Bare Copper Conductors – Made from soft, high-quality copper for excellent conductivity and flexibility.

  2. Conductor Shielding – A protective layer is applied over the copper to enhance electrical performance and safety.

  3. EPR Insulation (Natural Color) – Ethylene-Propylene Rubber (EPR) insulation provides durability, heat resistance, and electrical insulation.

  4. Insulation Shielding – Extra shielding over the insulation to improve protection against electrical interference.

  5. Shielded Phase Conductors – Each phase conductor is wrapped with a combination of tinned copper and a colored textile braid for added shielding and identification.

  6. Flexible Copper Conductor – Another layer of soft copper for better flexibility and strength.

  7. Mylar Tape – A thin protective tape layer for insulation stability.

  1. Yellow XLP Ground Check Conductor – A safety grounding conductor insulated with tough cross-linked polyethylene (XLP) for extra durability.

  2. Stranded Tinned Copper – Uninsulated copper strands that are tinned for better corrosion resistance.

  3. Rubber-Faced Binder Tape – A binding tape that helps keep the cable structure intact.

  • TPU Outer Jacket (Multiple Colors Available) – A tough, flexible thermoplastic polyurethane (TPU) outer layer available in yellow, orange, red, black, and more for high durability and visibility.

  • 💡 For extreme corrosion-prone environments, tinned copper options are available for better protection.

  • Purpose:

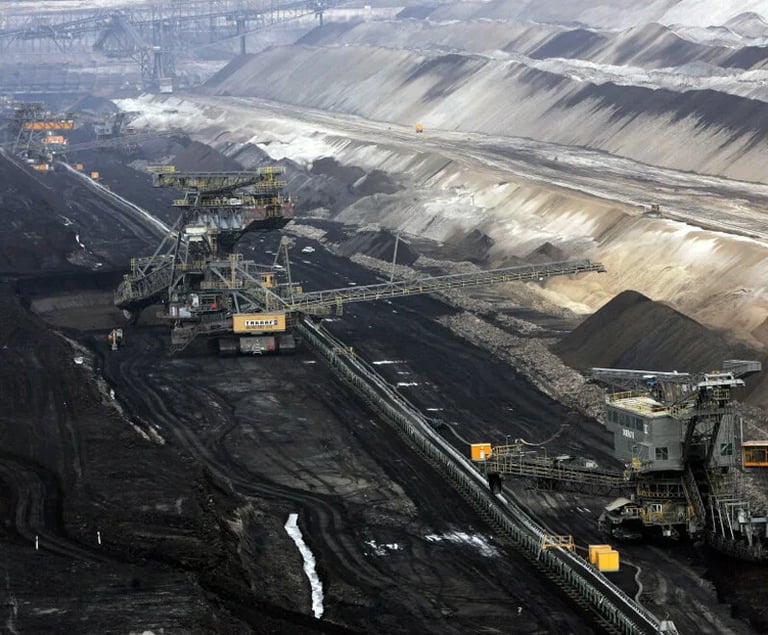

    • Designed for powering mining equipment in tough environments.

Key Properties:

  • Highly Reliable – Built for long-lasting and stable performance.

  • Low Moisture Absorption – Resists water damage, ensuring durability.

  • Flexible Conductors – Allows easy handling and installation.

  • Superior Flexibility – Can bend and move without breaking.

  • Strong Acid & Alkaline Resistance – Withstands exposure to harsh chemicals.

  • High-Temperature Resistant – Handles extreme heat conditions.

  • Impact & Abrasion Resistant – Tough against physical wear and tear.

  • Moisture & Flame Resistant – Protects against water damage and fire hazards.

  • High Tensile Strength – Strong and durable under tension.

  • Sunlight & UV Resistant – Designed to last even in direct sun exposure.

  • Oil & Chemical Resistant – Safe for use in oily or chemical-heavy areas.

  • Compression & Flattening Resistant – Maintains shape under heavy pressure.

  • Ozone Resistant – Stays strong even in ozone-rich environments.

  • Tear & Mechanical Damage Resistant – Built to withstand rough handling.

  • Worker Safety – Designed with protective features to ensure operator security.

Special Features:

  • Built-in Ground Check Conductor – Continuously monitors grounding connections, increasing worker safety.

  • "Extra Heavy Duty" TPU Jacket – Extra protection for extreme mining conditions, both underground and open-pit.

  • Exceeds Industry Standards – The TPU jacket surpasses ICEA S 75-381 standards in strength, flexibility, abrasion resistance, and durability, making it ideal for heavy-duty applications like dragging, winding, and flattening.

Standards & Certifications:

  • Industry Standard: ICEA S 75-381

  • Safety Certification: MSHA (Mine Safety & Health Administration)

  • Quality Certification: ISO 9001:2015 (Certified by Bureau Veritas)

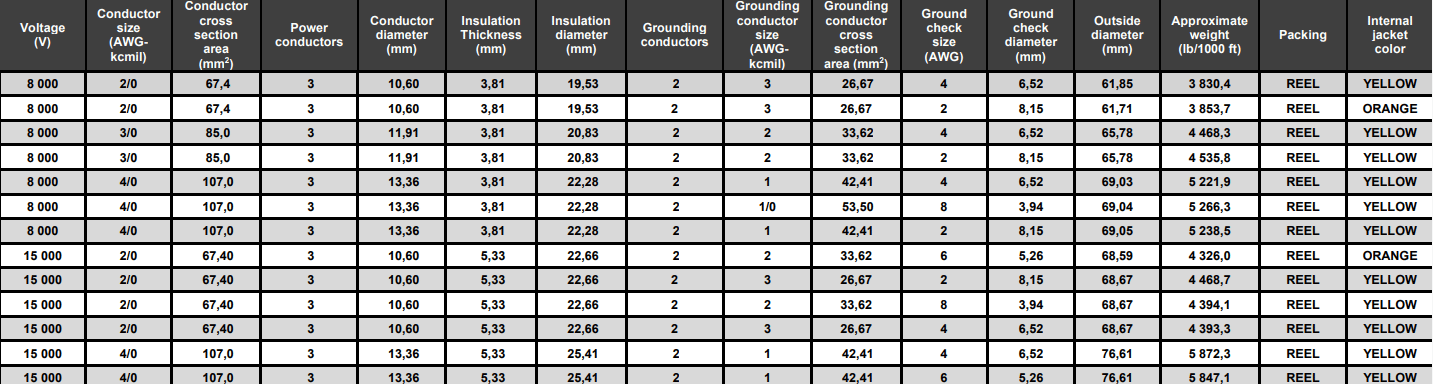

Technical Specifications:

  • Voltage Options: 8 kV | 15 kV

  • Operating Temperature:

    • Normal: 90°C

    • Emergency Overload: 130°C

    • Short Circuit: 250°C

  • Installation Type: Visible (On the Ground)

  • Insulation Material: Ethylene-Propylene Rubber (EPR)

  • Outer Jacket Material: Thermoplastic Polyurethane (TPU)

Ordering Information:

  • Cable Type: SHD-GC

  • Voltage Rating

  • Conductor Size

  • Jacket Color (TPU)

  • Cable Length

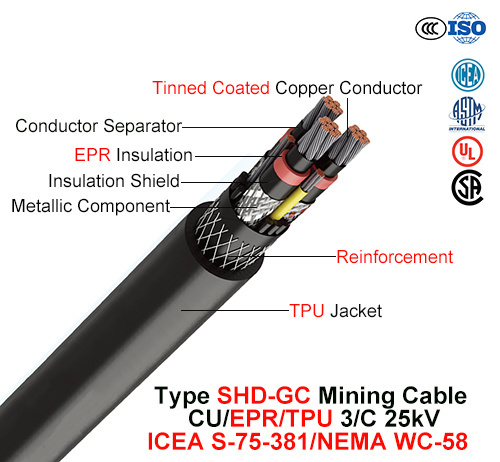

Type SHD-GC ROUND PORTABLE CABLES WITH TPU JACKET

The SHD-GC mining cable is designed for heavy-duty mining applications, offering high reliability, flexibility, and exceptional resistance to moisture, abrasion, chemicals, and extreme temperatures. Its Extra Heavy Duty (EHD) TPU jacket ensures maximum durability in both underground and open-pit mining environments. Equipped with a ground check conductor, it provides continuous monitoring for enhanced worker safety. Meeting ICEA S 75-381 and MSHA standards, this cable delivers superior mechanical strength, flame resistance, and long-term performance, making it an ideal choice for demanding mining operations. Available in 8 kV and 15 kV voltage ratings.
