Type SHD-GC Mining Cable SELF SUFFICIENT LEDs FOR VISUAL CONTROL

ROUND PORTABLE CABLES WITH GROUNDING CONDUCTORS GROUND CHECK, TRANSPARENT TPU JACKET

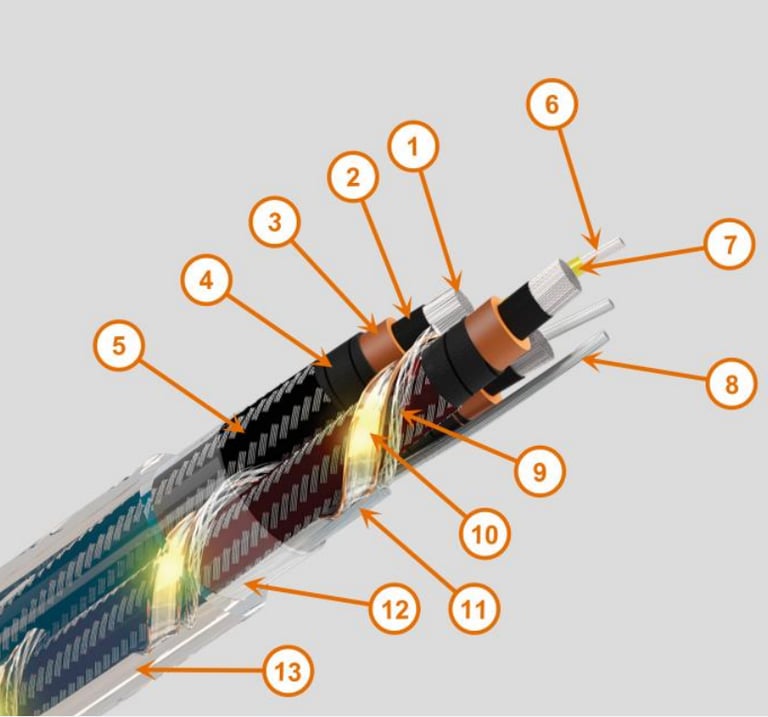

  1. Flexible Tinned Copper Conductors – Soft and flexible copper wires with a tin coating to improve durability and conductivity.

  2. Extruded Conductor Shielding – A protective layer around the conductor to enhance electrical performance and safety.

  3. EPR (Ethylene-Propylene Rubber) Insulation – A high-quality rubber insulation in its natural color, offering flexibility and resistance to heat and chemicals.

  4. Extruded Insulation Shielding – An additional layer over the insulation to improve electrical shielding and safety.

  5. Copper & Textile Braid Shield – A combination of tinned copper and colored textile braid surrounding each phase conductor for extra protection and interference reduction.

  6. Flexible Bare Copper Conductor – Soft, tinned, and uncoated copper strands to ensure good electrical performance and flexibility.

  7. Yellow XLP Ground Check Conductor – A cross-linked polyethylene insulated ground conductor with a yellow color for easy identification and extra durability.

  8. Stranded Uninsulated Tinned Copper – Multiple strands of tinned copper wire without insulation, used for grounding.

  9. Unified Grounding Braid – A tinned copper braid that connects the phase conductor shields and LED devices for better grounding.

  1. Self-Sufficient LED Indicators – Built-in LED lights that serve as visual indicators for monitoring the cable's status.

  2. Internal Circular PVC Layer – A transparent and flexible PVC layer that helps maintain the cable’s round shape.

  3. Mylar Tape – A thin protective layer that adds insulation and shields against interference.

  4. Transparent TPU Outer Jacket – A durable, flexible, and transparent thermoplastic polyurethane covering for overall protection and visibility.

Purpose

  • Designed for powering mining equipment, ensuring stable and reliable performance in demanding environments.

Key Properties

  • Highly reliable – Built for long-lasting performance.

  • Low moisture absorption – Resists water and humidity.

  • Flexible conductors – Easy to handle and install.

  • Superior flexibility – Adapts well to movement and bending.

  • Acid and alkaline resistance – Withstands exposure to harsh chemicals.

  • High-temperature resistance – Operates safely in extreme heat.

  • Impact and abrasion resistance – Handles rough use and heavy wear.

  • Moisture and flame resistance – Reduces risks of water damage and fire hazards.

  • Strong tensile strength – Resists stretching and pulling forces.

  • Sunlight and oil resistance – Performs well in outdoor and industrial conditions.

  • Compression resistance – Maintains shape under pressure.

  • Ozone and tear resistance – Protects against environmental damage.

  • Enhanced safety – Designed to keep workers protected.

Special Features

  • Extra Heavy-Duty TPU Jacket – Provides maximum durability and safety for operators, making it suitable for both underground and open-pit mining.

  • Transparent TPU Compound – Allows clear visibility of built-in LED indicators.

  • Self-Sufficient LED Indicators –

    • Help prevent cable damage by alerting workers to its location.

    • Reduce the risk of electrical interruptions caused by moving equipment.

    • Improve safety in dark environments by making the cable easy to spot.

    • Do not require extra wiring when connecting plugs or joints.

  • High-Clarity TPU Material – Prevents fading even under strong sunlight, keeping visibility high.

Visibility in Darkness

  • Maximum efficiency for monitoring SHD-GC cables in low-light conditions.

Standards Compliance

  • Meets ICEA S-75-381 specifications.

Voltage Options

  • Available in 2 kV, 5 kV, 8 kV, 15 kV, and 25 kV.

Temperature Ratings

  • Normal operation: Up to 90°C

  • Overload conditions: Up to 130°C

  • Short circuit conditions: Up to 250°C

Installation Type

  • Designed for visible, on-ground placement.

Material Composition

  • Insulation: Ethylene-Propylene Rubber (EPR)

  • Outer Jacket: Thermoplastic Polyurethane (TPU)

Ordering Information

To place an order, specify:

  • Cable type (Round SHD-GC)

  • Voltage rating

  • Conductor size

  • Self-Sufficient LED indicators

  • TPU jacket type

  • Required cable length

Heavy-Duty SHD-GC Mining Cable with LED Indicators

Designed for rugged mining environments, this SHD-GC cable delivers exceptional durability, flexibility, and safety. It features tinned copper conductors, EPR insulation, and an extra-heavy-duty TPU jacket, providing superior resistance to moisture, chemicals, abrasion, and extreme temperatures. The built-in self-sufficient LED indicators enhance visibility in dark conditions, preventing accidental damage and ensuring continuous operation. With voltages from 2 kV to 25 kV, this cable is ideal for both underground and open-pit mining applications, offering maximum reliability and protection for mining equipment and personnel.
