MINING POWER CABLE TYPE G-GC

EPR INSULATION 90 °C, 2000 V

CHLORINATED POLYETHYLENE JACKET (CPE)

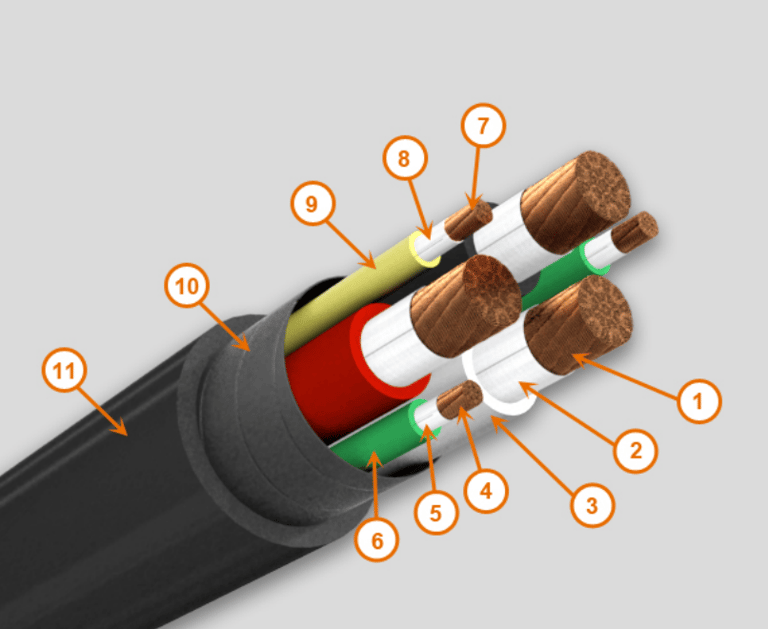

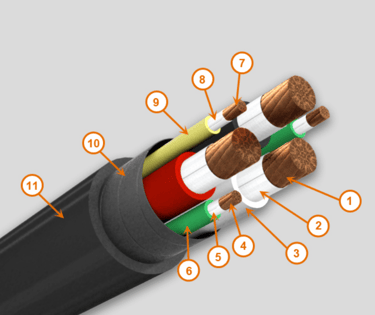

1- Flexible soft copper conductors – Ensure excellent electrical conductivity and flexibility.
2- Separator tape – Prevents layers from sticking together for a smooth structure.
3- Ethylene-Propylene (EP) insulation in different colors – Provides heat resistance and allows easy phase identification.
4- Flexible soft copper conductors* – Additional copper layer for enhanced performance.
5- Separator tape – Maintains insulation separation for added durability.
6- Ethylene-Propylene (EP) insulation in green – Green-colored insulation for grounding identification.
7- Flexible soft copper conductor* – Extra conductor for better flexibility and reliability.
8- Separator tape – Another protective layer to ensure structural integrity.
9- Ethylene-Propylene (EP) insulation in yellow – Yellow insulation for clear phase marking.
10- Rubberized binding tape – Holds internal components together securely.
11- Chlorinated polyethylene (CPE) jacket in black – Tough, weather-resistant outer layer for long-lasting durability.

Tinned Copper Option Available – For highly corrosive environments, we offer tinned conductors to extend cable lifespan.

Ideal for flexible cords and portable cables, used in demanding environments.

Key Features

• Strong and Durable – High tensile strength, abrasion resistance, and crushing resistance for tough conditions.

• Chemical and Environmental Protection – Resistant to acids, alkalis, oil, moisture, and ozone.

• High-Temperature Performance – Withstands normal (90°C), overload (130°C), and short circuit (250°C) conditions.

• Fire and Impact Resistance – Flame-retardant and built to withstand mechanical abuse and heavy impacts.

• Flexible and Reliable – Maintains excellent flexibility, even in extreme conditions.

• Sunlight and Water Resistance – Designed for outdoor use with low water absorption and UV protection.

Special Features

• Heavy-Duty Mining Cable – Built for mining equipment operating under extreme conditions.

• Ground Check Conductor – Ensures grounding continuity for added safety.

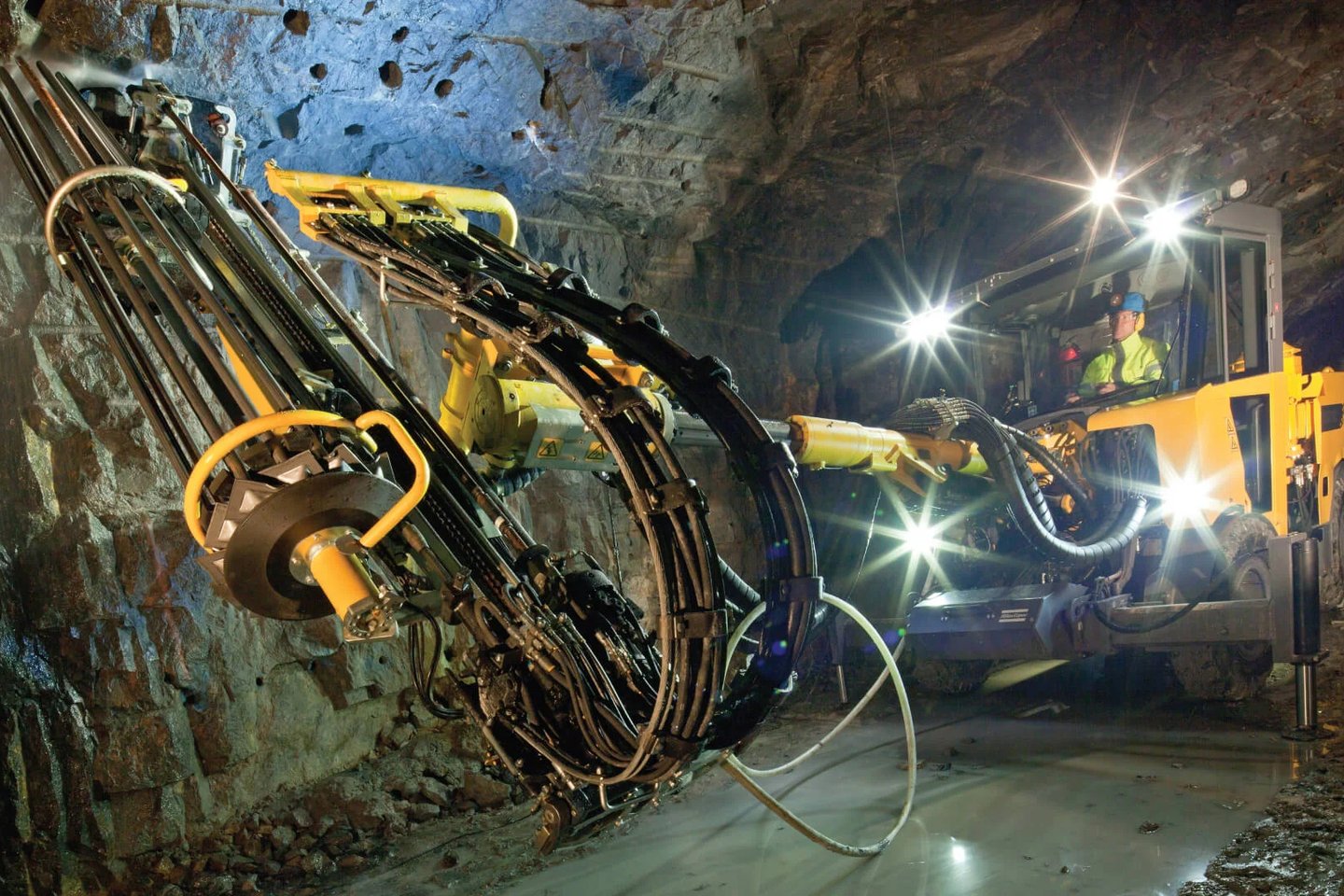

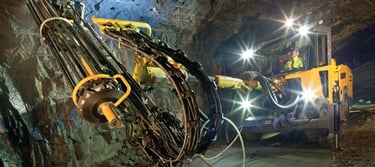

• Versatile Use – Suitable for open-pit and underground mining, powering continuous miners, shuttle cars, drills, pumps, and jumbos.

• Fire-Safe Design – Meets MSHA flame test safety standards.

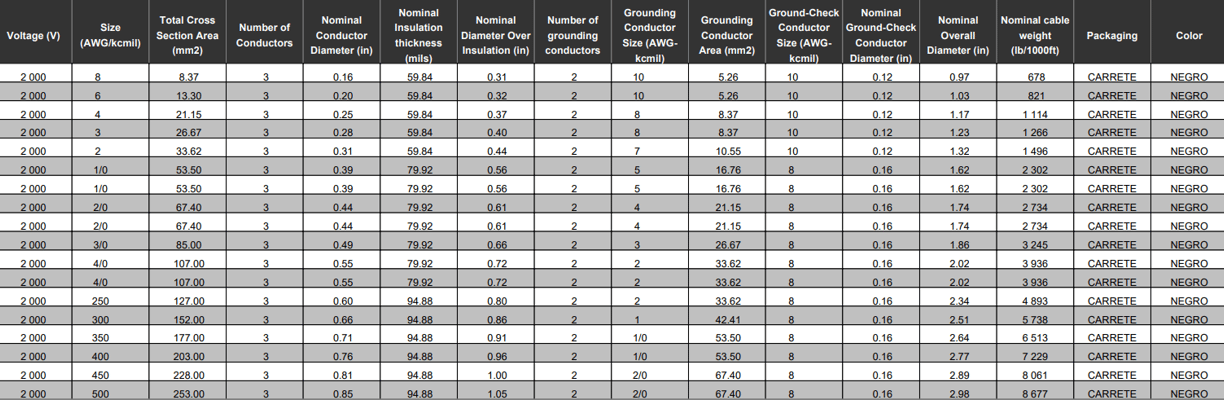

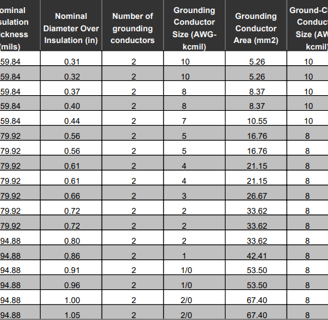

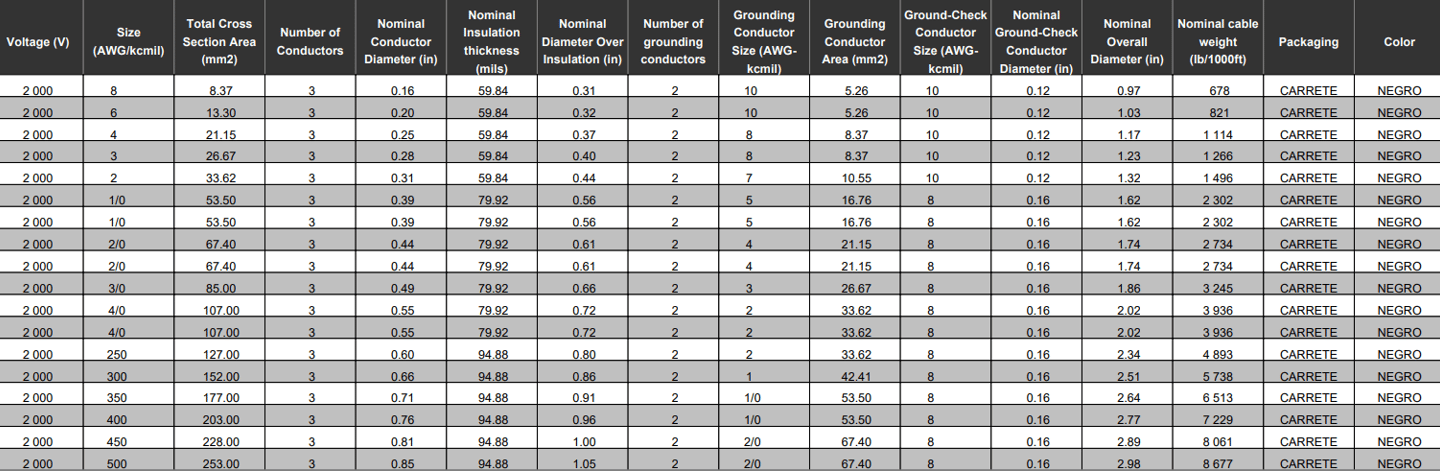

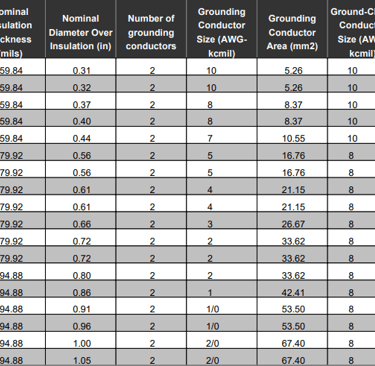

Technical Specifications

• Standard Compliance – Follows ICEA S 75-381 regulations.

• Voltage Rating – 2 kV, suitable for low-voltage applications.

• Installation Type – Visible installation for easy access.

• Insulation Material – Ethylene-Propylene Rubber (EPR) for durability and flexibility.

• Outer Jacket – Chlorinated Polyethylene (CPE) for protection against harsh environments.

Certifications

• ISO 9001:2015 – Certified by Bureau Veritas for quality assurance.

• MSHA Approved – Meets Mine Safety and Health Administration (MSHA) standards.
