CABLE TYPE MP-GC, THREE CONDUCTORS ROUND POWER MINE FEEDER CABLES

EPR INSULATION 90 °C, FROM 5 kV TO 25 kV

WITH TWO GROUNDING CONDUCTORS AND ONE GROUND-CHECK CONDUCTOR

CHLORINATED POLYETHYLENE JACKET(CPE)

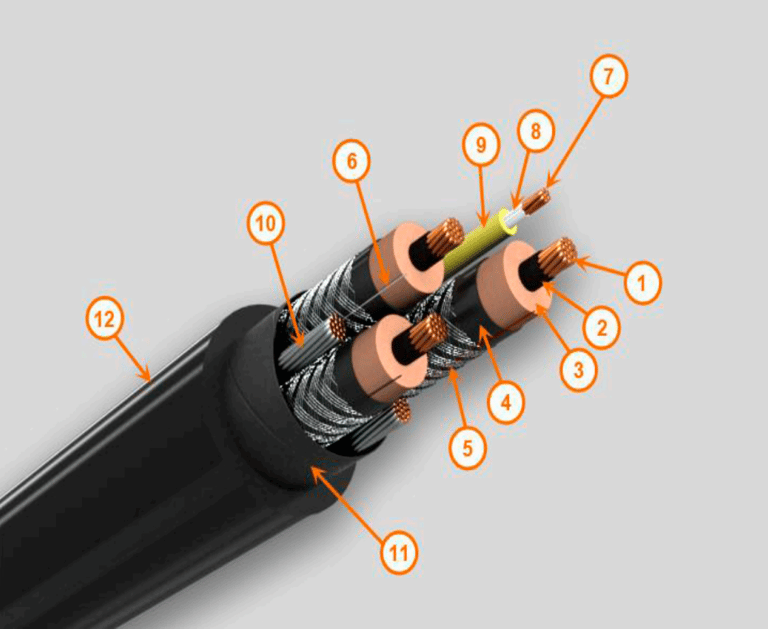

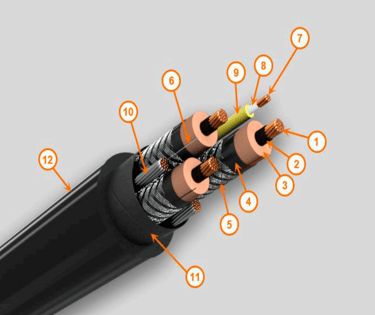

1. Annealed Copper Conductors (Class B): High-quality copper wires that are soft and flexible for better conductivity.

2. Extruded Conductor Shielding: A protective layer around the conductor to reduce electrical interference.

3. EPR (Ethylene-Propylene Rubber) Insulation: A durable, flexible, and heat-resistant rubber layer that provides insulation.

4. Extruded Insulation Shielding: A protective layer over the insulation to improve safety and performance.

5. Combination Annealed Tinned Copper: A mix of soft copper wires with a tin coating to resist corrosion.

6. Colored Textile Thread over Individual Phase Conductors: Color-coded threads to help identify different wires.

7. Soft Copper Ground Check Conductor: A flexible copper wire used for safety monitoring.

8. Mylar Tape: A thin, protective wrapping that enhances cable durability.

9. Yellow EPR Insulated Ground Check Conductor: A special safety wire insulated with yellow rubber for easy identification.

10. Stranded Annealed Uninsulated Plain Bare Copper Ground Wires: Soft, uncoated copper wires used for grounding.

11. Rubber-Faced Binder Tape: A protective rubberized tape that holds the cable layers together.

12. Chlorinated Polyethylene (CPE) Jacket: A tough outer layer that resists chemicals, moisture, and wear.

Optional Features:

• Tinned Copper Conductors: Available for better corrosion resistance in harsh environments.

• Jacket Colors: Choose from Yellow, Orange, Green, or Black to match site requirements.

Designed for medium-voltage power distribution in mining operations.

Key Properties:

• High reliability: Built for long-lasting performance.

• Low moisture absorption: Resists water damage for improved durability.

• Flexible conductors: Allows easy handling and installation.

• Excellent flexibility: Stays bendable even in tough conditions.

• Superior resistance: Withstands acids, alkaline substances, high temperatures, mechanical stress, and abrasion.

• Moisture and flame resistance: Protects against fire and water exposure.

• High tensile strength: Resists pulling and stretching.

• Sunlight and oil resistance: Performs well in outdoor and oily environments.

• Compression resistance: Handles heavy loads and pressure.

• Mechanical mistreatment resistance: Stands up to harsh working conditions.

• Ozone and tear resistance: Prevents cracking and damage over time.

• Strong mechanical durability: Ensures long service life in demanding applications.

• Enhanced worker safety: Built-in ground check conductor for continuous monitoring and extra protection.

Special Features:

• Mine Power Cable (MP-GC): Supplies power to mining equipment in both horizontal and vertical setups.

• Ground check conductor: Continuously monitors grounding to enhance worker safety.

Standards:

Complies with ICEA S-75-381 industry standards.

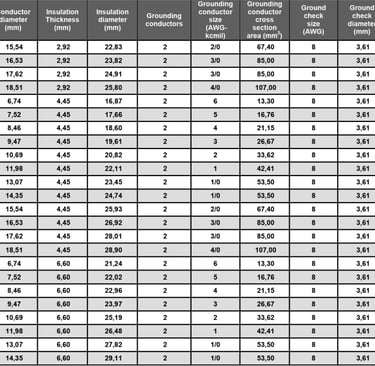

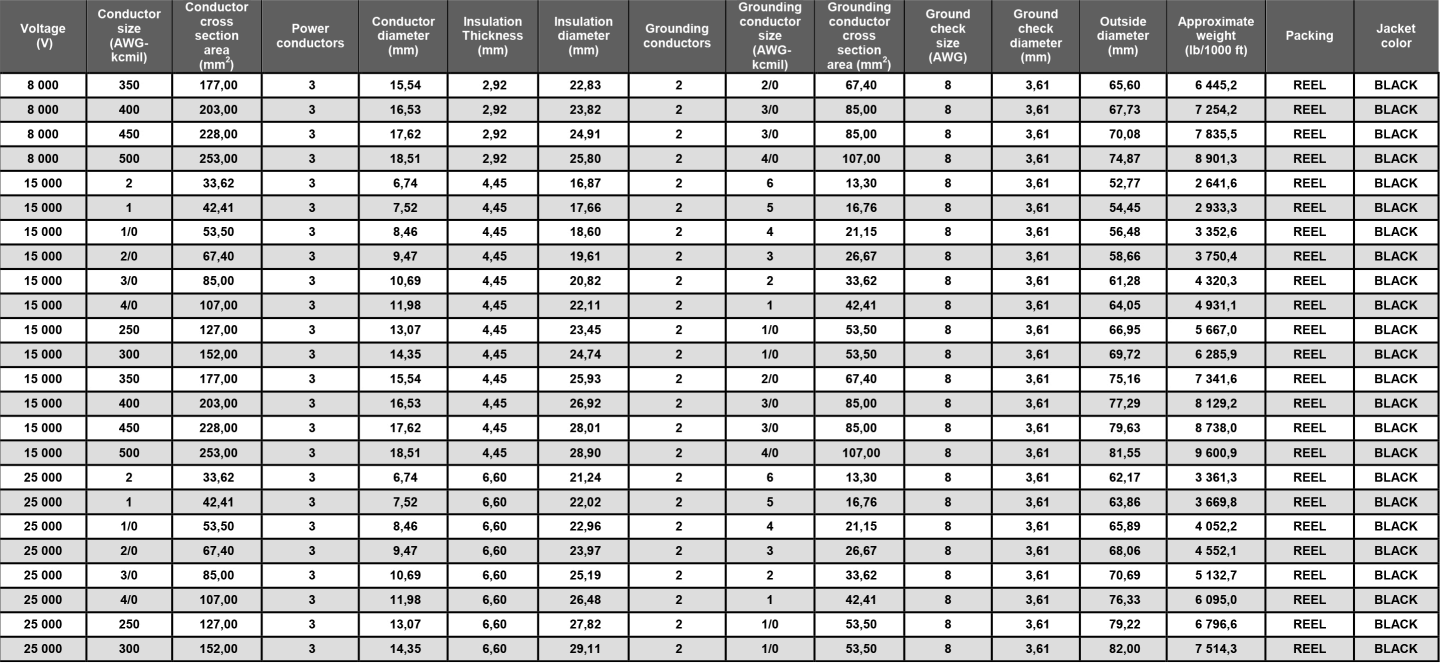

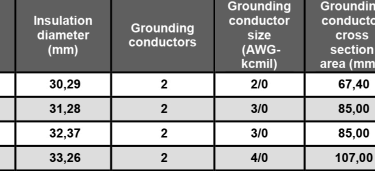

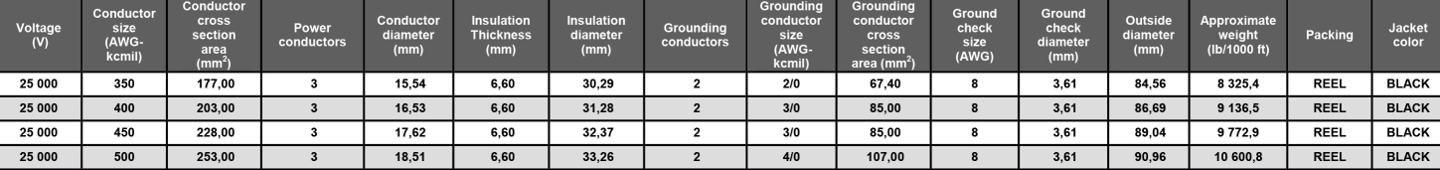

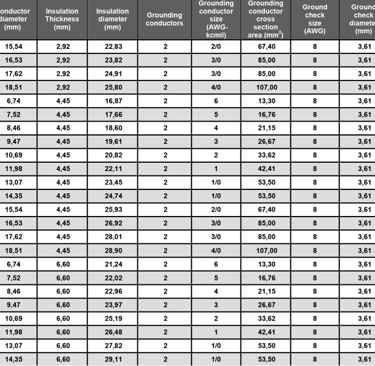

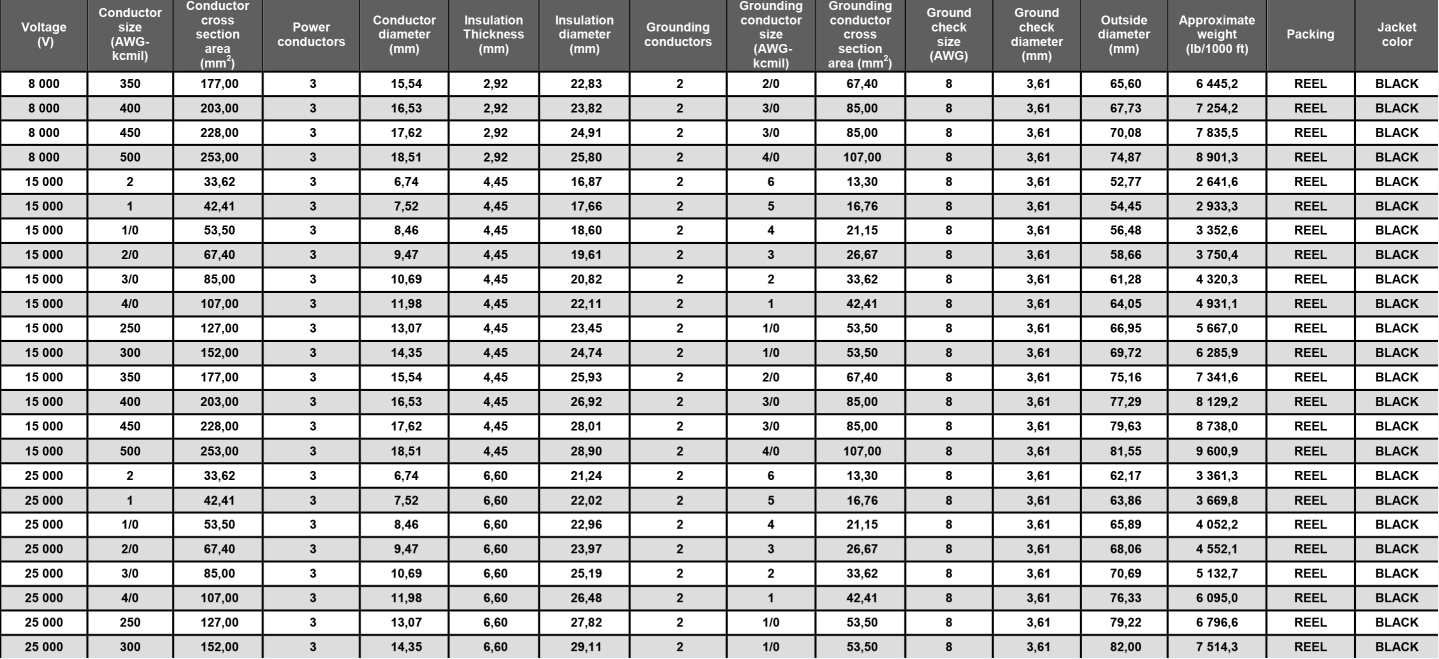

Voltage Ratings:

• 5 kV

• 8 kV

• 15 kV

• 25 kV

Temperature Ratings:

• Normal operation: 90°C

• Emergency overload: 130°C

• Short circuit: 250°C

Installation Type:

• Visible (on the ground) – Suitable for above-ground installations.

Materials:

• Insulation: Ethylene-Propylene Rubber (EPR) – Flexible, durable, and heat-resistant.

• Jacket: Chlorinated Polyethylene (CPE) – Tough outer layer resistant to chemicals, moisture, and wear.

Certifications:

• Mine Safety and Health Administration (MSHA): Certified for mining safety.

• ISO 9001:2008: Quality-certified by Underwriters Laboratories (UL).

Ordering Information:

Specify the following when ordering:

• Mine Power Cable (MP-GC)

• Voltage rating (5 kV, 8 kV, 15 kV, or 25 kV)

• Conductor size

• CPE jacket color (Yellow, Orange, Green, or Black)

• Length
